Convis is Kentik Labs' open source container visibility tool, first published for eBPF Summit 2021. We developed convis as a demonstration of using BPF kprobes and tracepoints to attribute network traffic to source and destination process, container, and node. This has numerous useful applications including determining which processes and containers receive or generate the most traffic and security forensics and alerting on traffic from unexpected IP addresses.

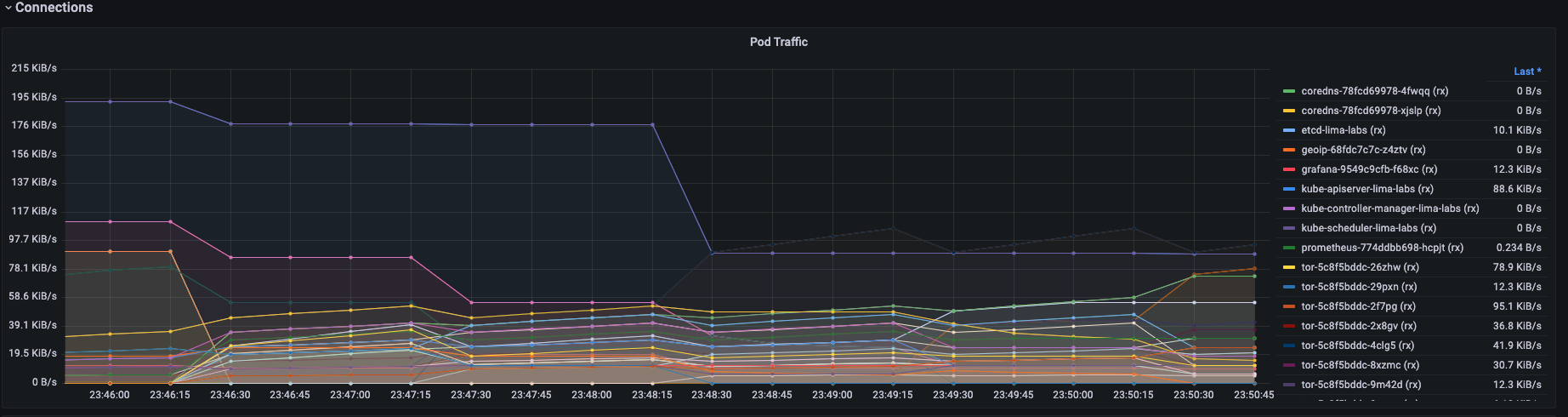

pod traffic

Traditional network visibility tools like NetFlow and sFlow rely on network hardware such as switches and routers inspecting network traffic and generating flow records. This worked well when most applications were running directly on a physical or virtual node, communicating over the network. However the rise of containers has resulted in significant amounts of traffic occurring between containers within a single node, no longer visible on the network. Container orchestrators like Kubernetes may also use overlay networks and/or encryption for traffic between nodes, further reducing network-level visibility.

Convis captures traffic at the lowest possible level, when an application calls into the kernel to accept or initiate a connection. Using eBPF these programs can inspect the arguments to the call, extracting for example the source and destination IP address and ports of a new TCP connection.

Process & Container Info

In addition to the standard 5-tuple used to identify network traffic: protocol, source address, source port, destination address, destination port, convis also tracks the process and container that initiated or accepted a connection. This provides visibility into exactly which processes and containers are communicating with each other, and with the internet. Convis uses eBPF’s bpf_get_current_pid_tgid() helper function to extract the calling pid when a kprobe or tracepoint is hit, and then looks up the rest of the process information via procfs.

Container details are requested from either the Docker API or Container Runtime Interface (CRI), using the container ID which is extracted from the cgroup paths assigned to the container. When running in a non-containerized environment convis will output process details only.

eBPF Programs

Convis attaches BPF programs to the process exec & exit tracepoints and kprobes to the kernel functions to connect, accept, and close TCP connections. Example:

The sched_process_exec and sched_process_exit tracepoints generate an event whenever a process is executed or exits, allowing convis to efficiently maintain a cache of all processes executing on the node.

SEC("tracepoint/sched/sched_process_exec")
int bpf_trace_sched_process_exec(sched_process_exec_ctx *ctx) {
    struct header event = {
        .kind = EXEC,
        .pid  = ctx->pid,
    };

    int rc = bpf_perf_event_output(ctx, &events, BPF_F_CURRENT_CPU, &event, sizeof(event));
    if (rc != 0) {
        bpf_printk("exec event output failure: %d\n", rc);
    }

    return 0;
}

Entry and exit of the tcp_v4_connect kernel function is intercepted via kprobes to track whenever a TCP connection is initiated. The inet_csk_accept and tcp_close functions are intercepted via kprobes to track when a new connection is accepted and when a TCP connection is closed. The number of bytes sent and received is also output when the connection is closed. Example:

SEC("kretprobe/inet_csk_accept")
int bpf_call_inet_csk_accept(struct pt_regs *ctx) {
    struct sock *sk = (void *) PT_REGS_RC(ctx);

    if (sk == NULL) {
        return 0;
    }

    u64 pid_tgid = bpf_get_current_pid_tgid();
    u32 pid = pid_tgid >> 32;
    u32 tid = pid_tgid;

    struct sock_common sc;
    bpf_probe_read(&sc, sizeof(sc), &sk->__sk_common);

    struct accept event = {
        .header = {
            .kind = ACCEPT,
            .pid  = pid,
        },
        .socket = {
            .proto = 6,
            .saddr = sc.skc_rcv_saddr,
            .sport = sc.skc_num,
            .daddr = sc.skc_daddr,
            .dport = ntohs(sc.skc_dport),
        },
    };

    int rc = bpf_perf_event_output(ctx, &events, BPF_F_CURRENT_CPU, &event, sizeof(event));
    if (rc != 0) {
        bpf_printk("accept event output failure: %d\n", rc);
    }

    return 0;
}

Prometheus Sink

Convis can use the Prometheus remote write protocol to write metrics to any Prometheus instance, including Grafana Cloud. Simply specify prometheus as the sink and provide a URL to the remote write endpoint: --sink prometheus,endpoint=<url>,[username=<user-name>],[password=<password>]

Valid arguments for the Prometheus sink are:

  • endpoint: URL of the Prometheus server’s remote write endpoint
  • username: optional username to use for HTTP authentication
  • password: optional password to use for HTTP authentication

New Relic Sink

Convis can also output directly to New Relic’s Event API. Simply specify newrelic as the sink and provide your New Relic account number and insert key: --sink newrelic,account=<account-ID>,key=<insert-key>.

Valid arguments for the New Relic sink are:

  • account: New Relic account ID
  • key: Event API insert key
  • region: optional New Relic region (US or EU)

Open Source

Convis is open source and Kentik Labs welcomes comments and contributions. Join us on GitHub and Discord and help build the future of open source network observability!
